Kohler K33 Generator Set

Product Description

General Description

The Kohler K33 Generator Set, diesel, manufactured in France, produces 33 kVA in emergency mode and 30 kVA in continuous mode, at a frequency of 50 Hz and a speed of 1500 rpm. Supplied voltage: 400 / 230 V.

Engine

The generator is equipped with a KOHLER KDI engine with a displacement of 2.48 liters, providing a maximum power of 31 kW:

• Number of cylinders: 4
• Fuel: diesel
• Cooling system type: radiator
• Fuel consumption at 100% load: 7.5 l/h
• Fuel consumption at 75% load: 5.9 l/h
• Fuel consumption at 50% load: 4.2 l/h

Alternator

The generator set is equipped with a Kohler alternator with direct coupling, self-excited without brushes, insulation class H, protection degree IP 23, with 3 phases / 4 poles.

Structural Elements

The generator is equipped with a 100-liter tank integrated under the chassis, electronic speed regulator, preheating system for the cooling liquid (for easy starting in cold seasons), 12V starting system, rectifier for battery charging when the generator is not operating, alternator for charging the battery during engine operation, and vibration dampers located between the chassis and the engine-alternator assembly.

APM303 Digital Controller

The control panel is easy to use even for unskilled personnel, designed to provide extensive details about the generator’s operation. The controller incorporates dozens of measuring instruments for generator operation, signaling devices for faults and more, command buttons, and indicators for various warning messages and correct operation of the entire assembly.

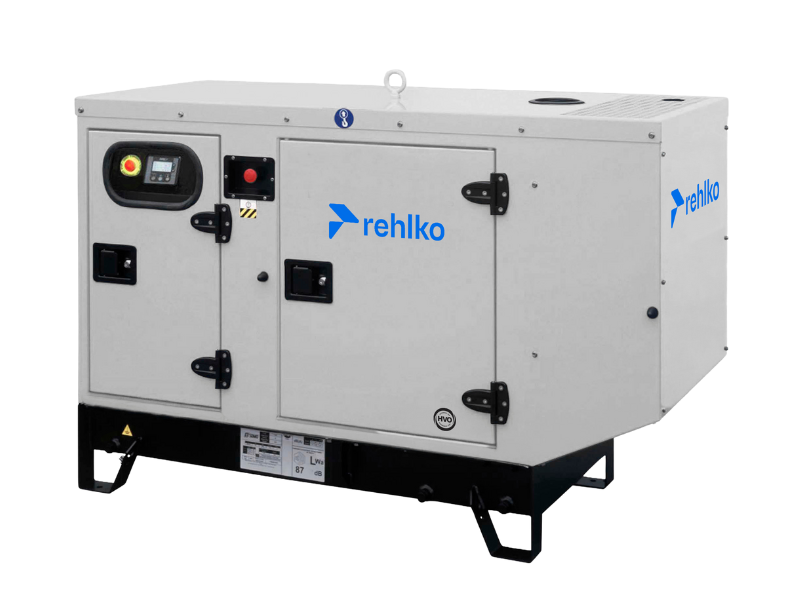

Soundproof Canopy

The soundproof canopy is built from resistant elements, painted to the highest standards. The canopy is equipped with doors that allow easy access to the generator set elements for quick and easy interventions. The soundproofing capacity of the canopy is impressive, reducing the noise level to 76 dB at 1 meter and 63 dB at 7 meters.

• Dimensions of the soundproof generator: L 2100 mm x W 938 mm x H 1285 mm.
• Total weight: 756 kg.

AAR VERSO 100 S – 63 A source inverter (OPTIONAL)

• Panel dimensions: 385mm x 385mm x 193mm.
• Protection for ±15% fluctuations in frequency and voltage;
• Phase sequence protection for the network and the group;
• Phase loss protection.
• LED for signaling the phase alignment of the network and the group;
• LED for the status of the electrical network or the group;
• LED for the position of the contactor for the network and the group.

After-Sales Services

In addition to KOHLER generators, Best Tools offers complete services: consultancy, training, warranties, maintenance contracts, a full range of related equipment, delivery, installation, and commissioning. Best Tools Company technicians are directly trained by KOHLER, regularly participating in training sessions organized in Brest, France. National coverage is provided by over 15 mobile service laboratories and by personnel located in key points in Romania. The central service laboratory in Bucharest meets the expectations of the premium manufacturers we represent.

BEST TOOLS COMPANY & KOHLER

Kohler Company was established in 1873 in the United States. In 1920, Kohler produced the first modern generator. Its generator division became increasingly efficient, especially after the acquisition of the French manufacturer SDMO Industries. At present, Kohler is the third most important generator manufacturer in the world, being a true trendsetter in the field.

Best Tools Company is the exclusive Kohler dealer in Romania and neighboring countries, distributing the complete range of the renowned manufacturer, from portable generators to high-power generator sets (1 – 4500 kVA).
