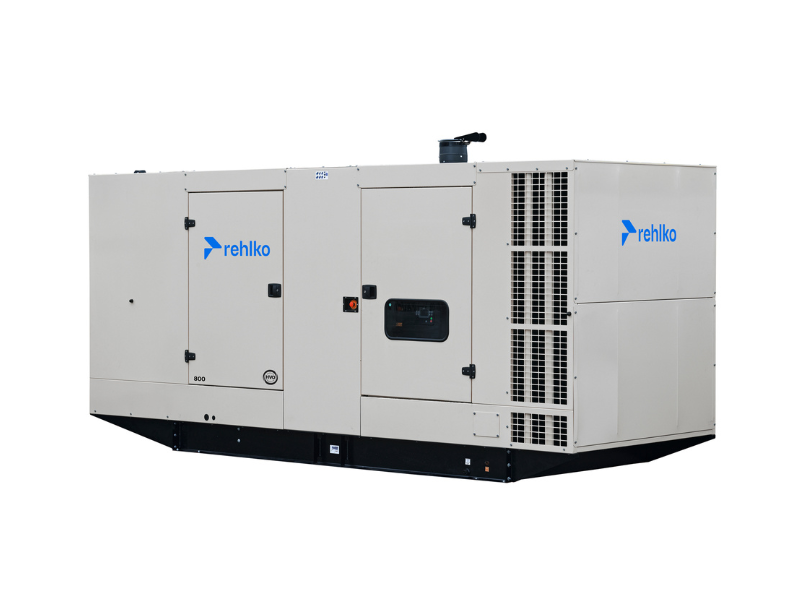

Kohler KD800 Generator Set

Product Description

General Description

Kohler KD800 Generator Set, diesel, manufactured in France, capable of producing 800 kVA in emergency mode and 727 kVA in continuous mode, at a frequency of 50 Hz and a speed of 1500 rpm. Supplied voltage: 400 / 230 V.

Engine

The generator is equipped with a KOHLER KDI engine of 26.97 liters, with a maximum power of 709 kW:

• Number of cylinders: 12
• Fuel: diesel
• Cooling system type: radiator
• Consumption at 100% load: 150 l/h

Alternator

The generator set is equipped with a Kohler alternator with direct coupling, self-excited without brushes, insulation class H, protection degree IP 23, with 3 phases / 4 poles.

Constructive Elements

The generator is equipped with an integrated 1035-liter tank under the chassis, electronic speed regulator, preheating system for the cooling liquid (for easy starting in cold seasons), 12V starting system, rectifier for battery charging when the generator is not running, alternator for charging the battery during engine operation, and vibration dampers located between the chassis and the engine-alternator assembly.

APM403 Digital Controller

The control panel is user-friendly, even for unskilled personnel, designed to provide extensive details about the generator’s operation. The controller incorporates dozens of measuring instruments for generator operation, signaling devices for faults and more, control keys, and indicators for various warning messages and correct operation of the entire assembly.

Soundproof Enclosure

The soundproof enclosure is built from resistant elements, painted to the highest standards. The enclosure is equipped with doors that allow easy access to the generator’s components for quick and easy interventions. The soundproofing capacity of the enclosure is impressive, reducing the noise level to 86 dB at 1 meter and 77 dB at 7 meters.

• Dimensions of the soundproof generator: L 6413 mm x W 2160 mm x H 2750 mm.
• Total weight: 8300 kg.

AAR VERSO 200 S – 1250 A Source Inverter (OPTIONAL)

• Panel dimensions: 1600mm x 606mm x 442mm.
• Protection for ±15% fluctuations in frequency and voltage;
• Phase sequence protection for the network and the group;
• Phase absence protection.
• LED for signaling the phase sequence of the network and the group;
• LED for the status of the electrical network or group;
• LED for the position of the contactor for the network and the group.

After-Sales Services

In addition to Kohler generators, Best Tools offers complete services: consultancy, training, warranties, maintenance contracts, a complete range of related equipment, delivery, installation, commissioning. Best Tools Company technicians are directly trained by KOHLER, regularly participating in training sessions organized in Brest, France. National coverage is ensured by over 15 mobile service laboratories and by personnel located in key points in Romania. The central service laboratory in Bucharest meets the expectations of the premium manufacturers we represent.

BEST TOOLS COMPANY & KOHLER

Kohler was founded in 1873 in the United States of America. In 1920, Kohler produced the first modern generator. Its generator division became increasingly efficient, especially after acquiring the French manufacturer SDMO Industries. Currently, Kohler is the third most important generator manufacturer in the world, being a true trendsetter in the field.

Best Tools Company is the exclusive Kohler dealer in Romania and neighboring countries, distributing the complete range of the renowned manufacturer, from portable generators to high-power generator sets (1 – 4500 kVA).
