Kohler V550C2 Generator Set

Product Description

General Description

The Kohler V550C2 Diesel Generator Set, manufactured in France, offers emergency power of 550 kVA and continuous power of 500 kVA, operating at a frequency of 50 Hz and a speed of 1500 rpm. Supplied voltage: 400 / 230V.

Engine

The generator is equipped with a VOLVO engine of 16.12 liters, delivering a maximum power of 484 kW:

• Number of cylinders: 6
• Fuel: diesel
• Cooling system type: radiator
• Consumption at 100% load: 103.8 l/h
• Consumption at 75% load: 78.2 l/h
• Consumption at 50% load: 53.2 l/h

Alternator

The generator set is equipped with a Kohler alternator with direct coupling, self-excited without brushes, insulation class H, protection degree IP 23, with 3 phases / 4 poles.

Constructive Elements

The generator comes with a 500-liter fuel tank, an electronic speed regulator, a preheating system for the cooling liquid (for easy starting in cold seasons), a 12V starting system, a rectifier for charging the battery when the generator is not operating, an alternator for charging the battery during engine operation, and vibration dampers located between the chassis and the engine-alternator assembly.

APM403 Digital Controller

The control panel is user-friendly, even for unqualified personnel, designed to provide extensive details about the generator’s operation. The controller incorporates dozens of measuring instruments for generator operation, signaling devices for faults and more, command keys, and indicators for various warning messages and proper operation of the entire assembly.

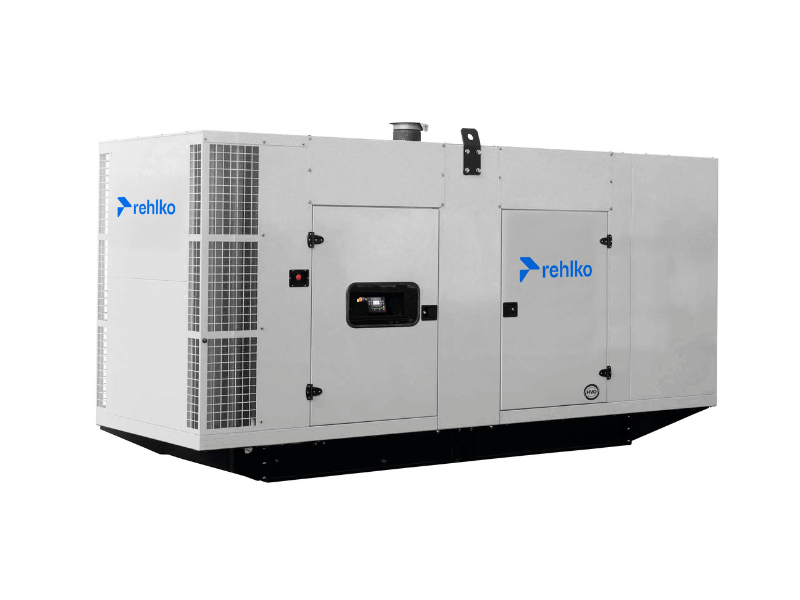

Soundproof Canopy

The soundproof canopy is constructed from sturdy elements, painted to the highest standards. The canopy is equipped with doors that allow easy access to the generator components for quick and easy interventions. The soundproofing capacity of the canopy is impressive, reducing the noise level to 82 dB at 1 meter and 72 dB at 7 meters.

• Generator Dimensions: L 5032 mm x W 1560 mm x H 2435 mm.
• Total Weight: 4870 kg.

AAR VERSO 200 S – 800 A Source Inverter (Optional)

• Panel Dimensions: 1600mm x 606mm x 442mm.
• Protection against ±15% fluctuations in frequency and voltage;
• Protection against phase sequence in the network and the group;
• Protection against phase loss.
• LED for signaling the phase alignment of the network and the group;
• LED for the status of the electrical network or group;
• LED for the position of the contactor for the network and the group.

After-Sales Services

In addition to Kohler generators, Best Tools offers complete services: consulting, training, warranties, maintenance contracts, a complete range of related equipment, delivery, installation, and commissioning. Best Tools Company technicians are trained directly by Kohler, regularly participating in training sessions organized in Brest, France. National coverage is provided by over 15 mobile service laboratories and personnel located in key points in Romania. The central service laboratory in Bucharest meets the expectations of the premium manufacturers we represent.

BEST TOOLS COMPANY & KOHLER

Kohler Company was founded in 1873 in the United States. In 1920, Kohler produced the first modern generator. Its generator division has become increasingly efficient, especially after acquiring the French manufacturer SDMO Industries. Currently, Kohler is the third most important generator manufacturer in the world, being a true trendsetter in the field.

Best Tools Company is the exclusive Kohler dealer in Romania and neighboring countries, distributing the full range of products from the renowned manufacturer, from portable generators to high-power generator sets (1 – 4500 kVA).
