Lindner Alcor Stationary Primary Shredder

Product Description

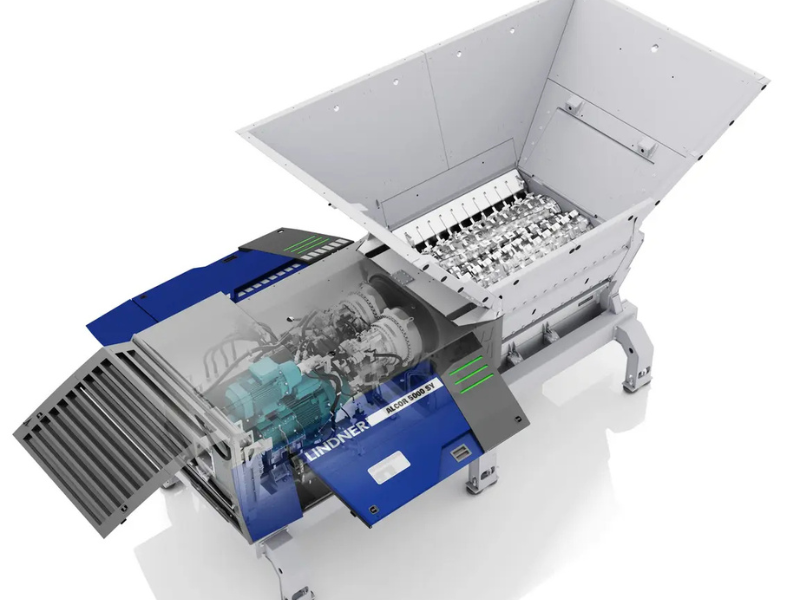

Alcor, the new twin-shaft shredder from Lindner, presents itself with the usual high throughput, powerful efficiency and, for the first time, stationary. The 355 kW electro-hydrostatic drive impresses with its fast response to load changes and due to its high torque is also suitable for particularly tough materials. The Lindner Sky Flap enables easy access to the cutting unit, allowing contaminants to be removed quickly. The breaker bar can also be easily removed or replaced via the Sky Flap. Thanks to the use of different shaft types, the Alcor can be used to efficiently shred a wide range of materials – from waste wood, rootstocks, C&I and MSW to aluminium and mixed scrap.

Fire Prevention

Thats how to play it safe

Lindner’s modern out-of-the-box FPS solution automatically detects and cools over heated particles in the material stream directly on the discharge conveyor, effectively preventing possible sources of fire. The system adapts the cooling process to the hazardous situation to ensure the facility operates optimally at all times.

• Precise detection of overheated materials
• Comprehensive monitoring of the entire cooling section
• Cooling process adapted to the hazardous situation
• Independent cleaning of the infrared sensors
• Temperature resistant and robust thanks to a special insulation system
• Highly flexible modular design

Water Sprinkling System

• To remove dust from the filling area
• 4 spray nozzles positioned in the enclosed hopper
• Switch it ON/OFF using the control panel
• Machine piping incl. central water supply
• Incl. heating system & piping insulation

FE metal separator

• Permanent over-belt magnet for ferrous metal separation
• Fitted above the conveyor belt
• Hydraulically height-adjustable
• Incl. discharge chute

Hardfacing kit

ADDITIONAL  WEAR PROTECTION PACKAGE CUTTING SYSTEM

• Ideal for shredding particularly abrasive material
• Knife hardfacing
• Scraper hardfacing

Fire extinguishing system

• For effective fire extinguishing in the engine compartment
• Releases cooling and suffocating foam
• Self-monitoring, no electricity needed
• Robust and maintenance-free thanks to galvanised, non-pressurized pipes

Input & Outpur Materials

• Waste wood
• C&I | MSW
• Light Scrap
• MSW plastics

Learn more about this product by downloading the brochure bellow.
