Lindner Micromat HP Stationary Universal Shredder

Product Description

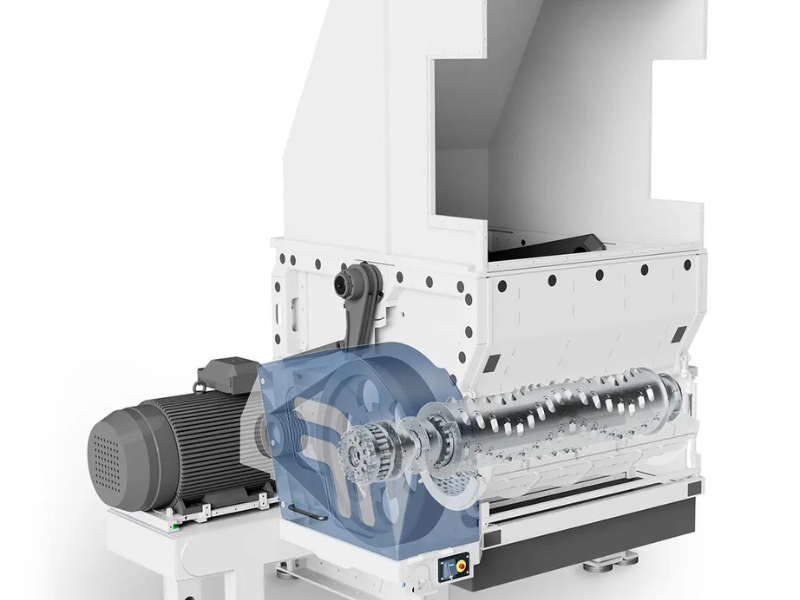

Single-shaft shredder with direct belt drive, unique Mono-Fix technology and lightning-fast safety clutch: this formula makes the Micromat HP series the benchmark for individual and flexible shredding of post-consumer and post-commercial plastics. The gearless drive of the Micromat HP series ensures continuously high throughputs at high speeds and, thanks to Lindner’s safety clutch, maximum protection against non-shreddables.

Fire Prevention

That’s How To Play It Safe

Lindner’s modern out-of-the-box FPS solution automatically detects and cools over heated particles in the material stream directly on the discharge conveyor, effectively preventing possible sources of fire. The system adapts the cooling process to the hazardous situation to ensure the facility operates optimally at all times.

• Precise detection of overheated materials
• Comprehensive monitoring of the entire cooling section
• Cooling process adapted to the hazardous situation
• Independent cleaning of the infrared sensors
• Temperature resistant and robust thanks to a special insulation system
• Highly flexible modular design

Water Sprinkling System

• To remove dust from the filling area
• 4 spray nozzles positioned in the enclosed hopper
• Switch it ON/OFF using the control panel
• Machine piping incl. central water supply
• Incl. heating system & piping insulation

Rotor Cooling

Complet Rotor Cooling System

• Ideal for shredding temperature-sensitive materials
• Prevents clumping and melting of the final product
• Incl. cooling aggregate
• Water connection pipe: 1″

Autom. Belt Tensioning System

Lindner ATB – Automatic Belt Tensioning System

• Always ensures optimum power transmission
• Belt exchange by hydraulic tensioning device
• Incl. self and preventive monitoring

Input and output materials

• Film
• HDPE plastics
• Paper
• Confidential data
