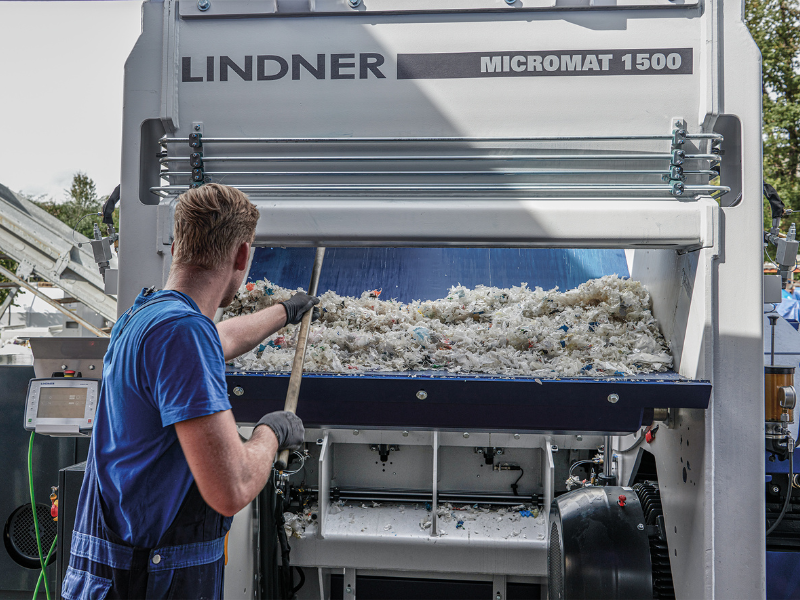

Lindner Micromat Stationary Universal Shredder

Product Description

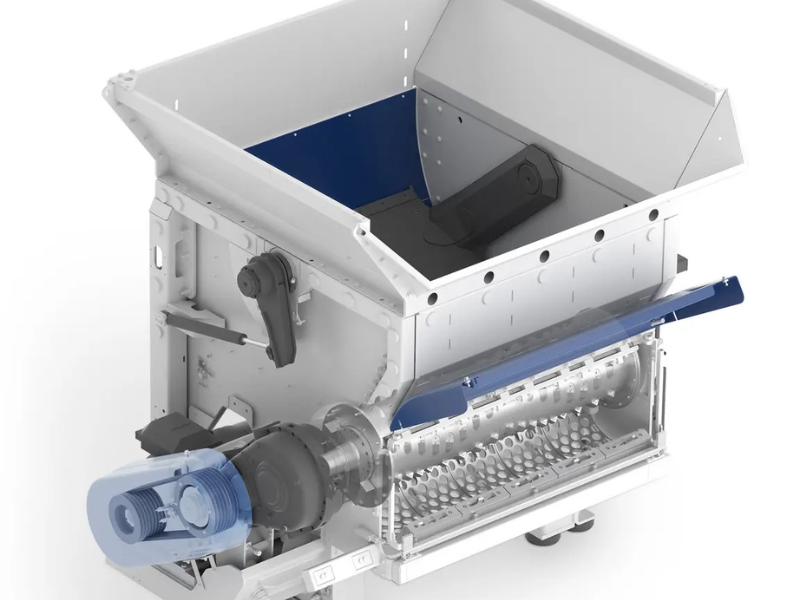

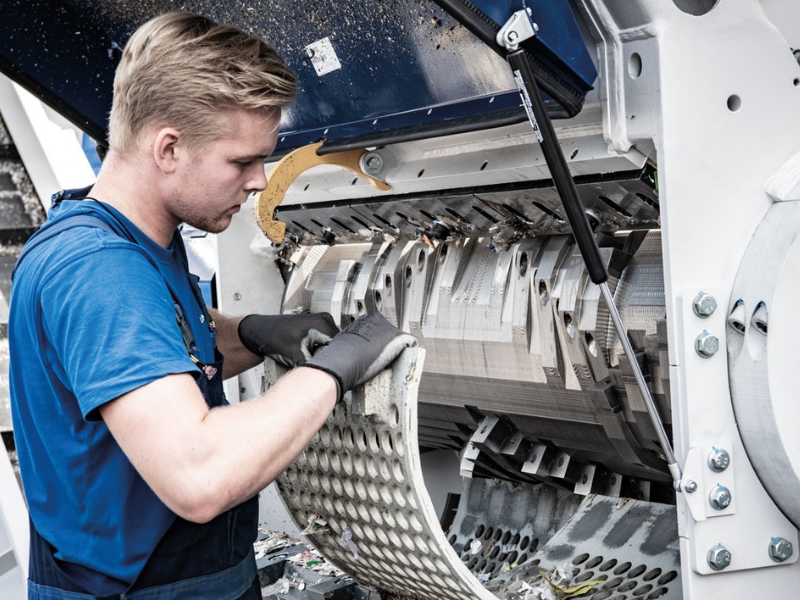

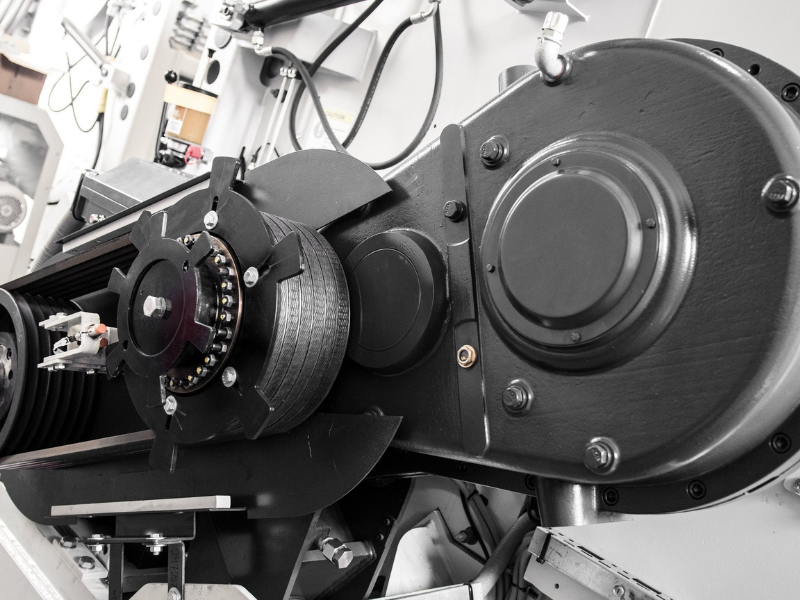

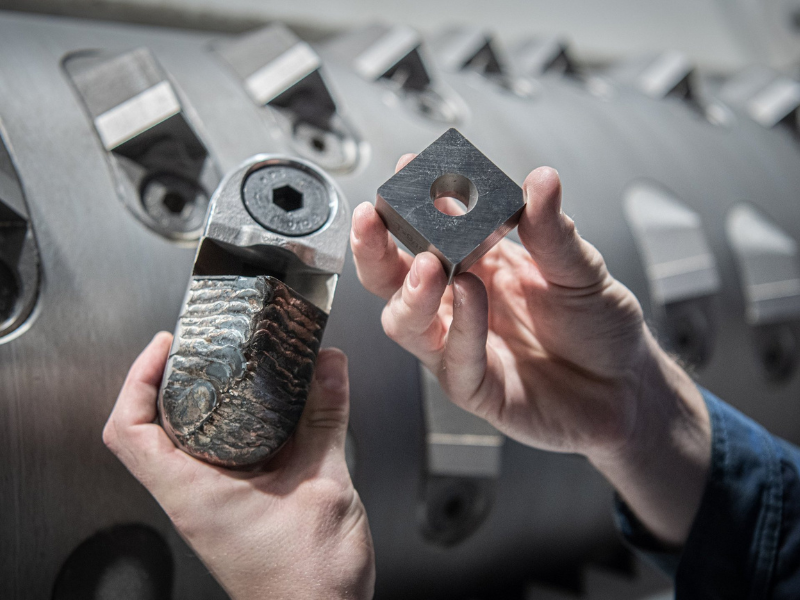

The single-shaft shredder in combination with its powerful gear or direct belt drive and its unique Mono Fix technology make the Micromat series the benchmark for shredding post-consumer or industrial waste. The Lindner Mono-Fix system allows knives and knife holders to be changed with just a single screw. Different pointed and flat knives as well as blind plates and special counter-knives can be used on the same rotor body – so the cutting system can be easily and effortlessly adapted to different input materials, which in turn has a positive effect on quality and throughput.

Fire Prevention

That’s How To Play It Safe

Lindner’s modern out-of-the-box FPS solution automatically detects and cools over heated particles in the material stream directly on the discharge conveyor, effectively preventing possible sources of fire. The system adapts the cooling process to the hazardous situation to ensure the facility operates optimally at all times.

• Precise detection of overheated materials
• Comprehensive monitoring of the entire cooling section
• Cooling process adapted to the hazardous situation
• Independent cleaning of the infrared sensors
• Temperature resistant and robust thanks to a special insulation system
• Highly flexible modular design

Water Sprinkling System

• To remove dust from the filling area
• 4 spray nozzles positioned in the enclosed hopper
• Switch it ON/OFF using the control panel
• Machine piping incl. central water supply
• Incl. heating system & piping insulation

Rotor Cooling

Complete Rotor Cooling System

• Ideal for shredding temperature-sensitive materials
• Prevents clumping and melting of the final product
• Incl. cooling aggregate
• Water connection pipe: 1″

Input and output materials

• Film
• HDPE plastics
• Paper
• Confidential data
